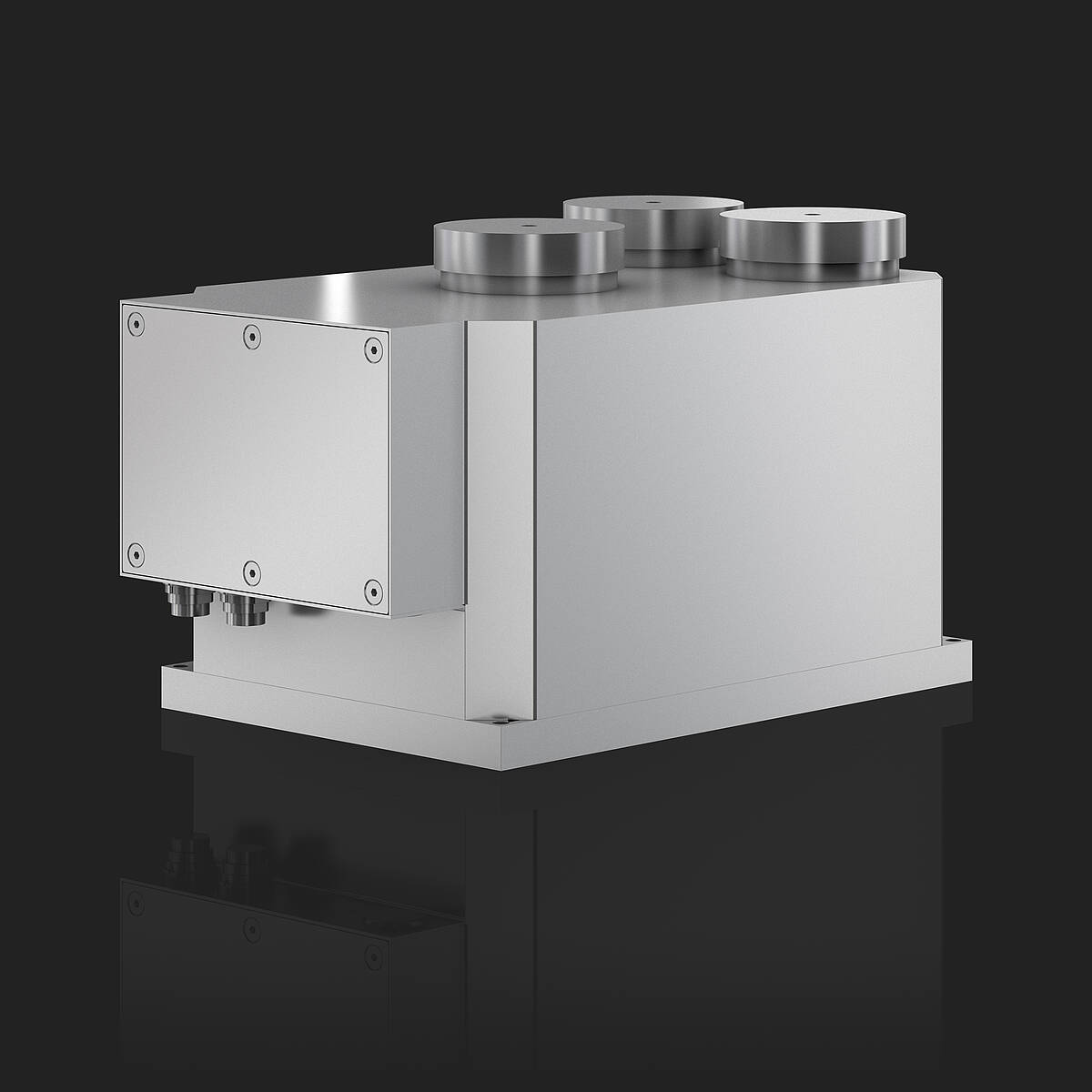

Weigh Cell EC-FS
The EC-FS Weigh Cell series covers a weighing range up to 15,000 g. They have been specifically designed as a compact sensor component and are especially suited for installation in checkweighers, price labellers as well as lift-up systems, filling and packaging machines, parcel and mail sorting systems. The Weigh Cells large additive dead load range favors the installation of large conveyor belts or weighing platforms without limiting the weighing range.
Weighing range up to 15,000 g
As a ready-for-connection installation component, the Weigh Cell supplies final weight values via a CAN interface as a standard feature. The integrated software filters can be configured in many ways thus allowing optimal adaptation of the weighing system to the relevant local conditions. The Weigh Cells extensive command set enables easy control engineering integration. Supplemented with a large number of options, the
Weigh Cells can also meet very specific requirements.
You need an individual solution? Please contact us.
Performance
| Max. weighing range (g) | 15,000 |
| Display value (g) | 0.01 |
| Max. dead load range (g) | 15,000 |
| IP (protection class) | 65 |
Technical Data
Features
- Weighing range up to 15 kg, covered by 5 models
- Additive dead load range up to 15 kg
- Stainless steel housing
- Protection class up to IP65
- Binary I/O channels with customer-specific functions
- Interface 1: CAN, RS 422
- Interface 2: RS 232 for service and configuration
- Sampling rate 1 ms
Options
2: Forceless connection of electrical aggregates
10: RS 422 instead of CAN interface
11: Bus operation
12: Higher display resolution
13: Binary I/O channels (4-fold)
14: Filling algorithm
25: Dead load compensation
With the optional CFI (CAN-Fieldbus-Interface) it is possible to connect to a variety of industrial fieldbus systems.
To be used in
- Filling and packaging machines
- Lift-up systems (for cup filling machines, convenience food filling machines, etc.)
- Checkweighers (for different branches like food, pharmaceuticals, chemicals and cosmetics)
- Parcel and letter sorting systems
Models of EC-FS Series
| Type | Weighing Range | Load Range | Display Value |
|---|---|---|---|
| EC 2000/2-FS | 750 g | 4,000 g | 0.01 g |
| EC 3000/3-FS | 1,500 g | 8,500 g | 0.02 g |
| EC 4000/3-FS | 3,750 g | 15,000 g | 0.05 g |
| EC 4000/2-FS | 7,500 g | 15,000 g | 0.1 g |
| EC 4000/1-FS | 15,000 g | 15,000 g | 0.2 g |
