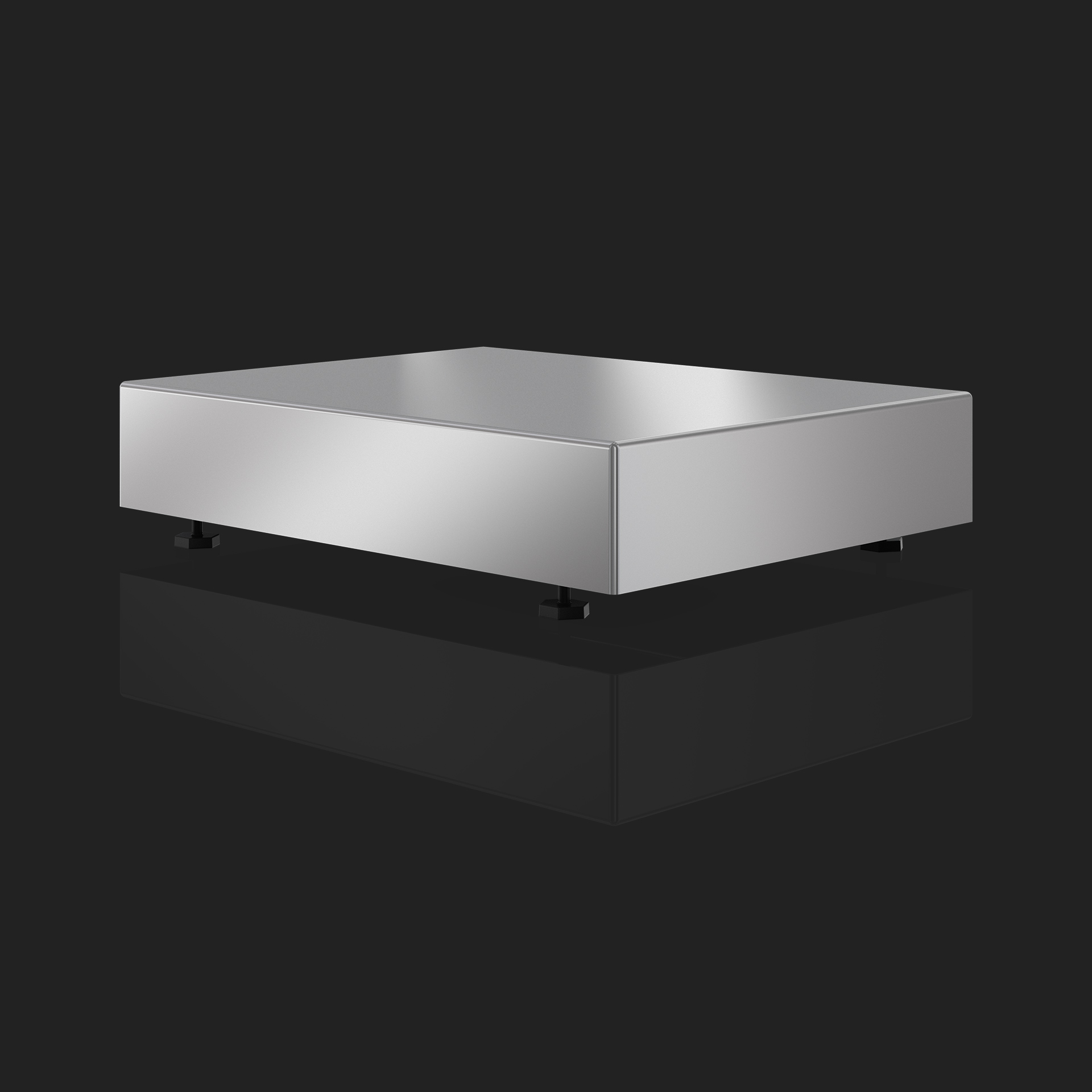

Weigh Cell IW-B-FS
The IW-B-FS Weigh Cell series covers the weighing range up to 120 kg. They have been specifically designed for heavy weight applications and are especially suited for installation into checkweighers, packaging and filling machines, and parcel sorting systems. The large additive dead load range favors the mounting of conveyor belts or weighing platforms without limiting the weighing range.
Weighing range up to 120 kg
As ready-to-connect modular component the Weigh Cell delivers final weight values via CAN interface as a standard feature. The integrated software filters can be configured multifunctional, enabling optimal adaptation of the weighing system to the respective ambient conditions. The Weigh Cells extensive command set facilitates simplified control engineering integration. Complemented by a variety of options, the Weigh Cell can also fulfill very specific requirements.
With an additional terminal the IW-B-FS Weigh Cell series can also be used as a static scale with very high resolutions, as an option.
You need an individual solution? Please contact us.
Performance
| Max. weighing range (g) | 120,000 |
| Display value (g) | 0.1 |
| Max. dead load range (g) | 150,000 |
| IP (protection class) | 65 |
Technical Data
Features
- Weighing range up to 120 kg, covered by 7 models
- Additive dead load range up to 150 kg
- Stainless steel cover (option)
- Binary I/O channels with customer-specific functions
- Interface 1: CAN, RS 422
- Interface 2: RS 232 for service and configuration
- Sampling rate: 1ms
Options
10: RS 422 instead of CAN interface
11: Bus operation
12: Higher display resolution
13: Binary I/O channels (4-fold)
25: Dead load compensation
With the optional CFI (CAN-Fieldbus-Interface) it is possible to connect to a variety of industrial fieldbus systems.
To be used in
- Filling and packaging machines Checkweighers (for different branches like food, pharmaceuticals, chemicals and cosmetics)
- Parcel sorting systems
- High resolution static weighing applications
Models of IW-B-FS Series
| Type | Weighing Range | Load Range | Display Value |
|---|---|---|---|
| IW-B 30k-FS | 6 kg | 60 kg | 0.1 g |
| IW-B 30k-FS | 12 kg | 60 kg | 0.2 g |
| IW-B 60k-FS | 30 kg | 60 kg | 0.5 g |
| IW-B 60k-FS | 60 kg | 30 kg | 1 g |
| IW-B 150k-FS | 30 kg | 150 kg | 0.5 g |
| IW-B 150k-FS | 60 kg | 150 kg | 1 g |
| IW-B 150k-FS | 120 kg | 150 kg | 2 g |
