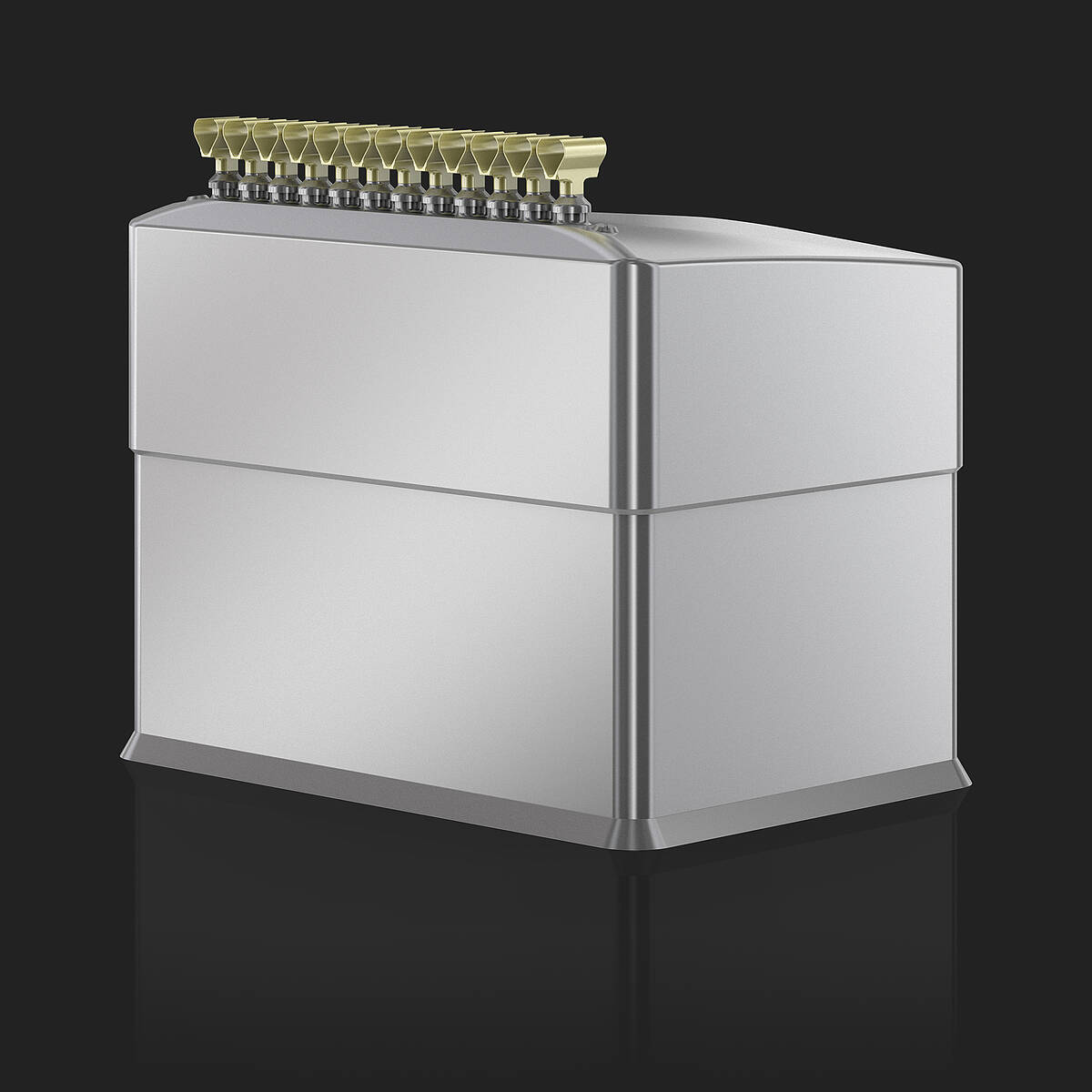

Weigh Cell MTC-FS
The MTC-FS multilane Weigh Cell series covers a weighing range up to 50 g. They have been specifically designed as a compact sensor component and are especially suited for installation in multitrack applications. Centerline distances of 15 mm or more can be implemented by installing sensors at the same time. An additionally integrated sensor eliminates low-frequency ground interferences and vibrations while maintaining the Weigh Cell's speed and accuracy.
Weighing range up to 50 g
As a ready-for-connection installation component, the Weigh Cell supplies final weight values via a CAN interface as a standard feature. The integrated software filters can be configured in multiple ways thus allowing optimal adaptation of the weighing system to the relevant local conditions. The Weigh Cell's extensive command set enables easy control engineering integration.
When it comes to the number of tracks and the centerline distance in combination with the weighing range and the design, all MTC-FS systems are always customer specific and individual.
You need an individual solution? Please contact us.
Performance
| Max. weighing range (g) | 50 |
| Display value (g) | 0.00001 |
| Max. dead load range (g) | 30 |
| IP (protection class) | 42 |
Technical Data
Features
- Weighing range up to 50 g
- Additive dead load range up to 30 g
- Active Vibration Compensation (AVC)
- High or flat type structured shape
- Aluminum or stainless steel housing
- Track distance from 15 mm
- Up to 18 tracks in one housing
- Protection class up to IP42
- Binary trigger input
- Interface 1: CAN, RS 422
- Interface 2: RS 232 for service and configuration
- Sampling rate 1 ms
Options
9: Stainless steel housing
10: RS 422 instead of CAN interface
12: Higher display resolution
13: Binary trigger input
32: Built in test weight
With the optional CFI (CAN-Fieldbus-Interface) it is possible to connect to a variety of industrial fieldbus systems.
To be used in
- Filling machines for vials, syringes, etc.
- Packaging machines
- Capsule and tablet weighing machines
Models of MTC-FS Series
| Type | Weighing Range | Load Range | Display Value |
|---|---|---|---|
| MTC 1/5-FS | 1 g | 1 - 5 g | 0.00001 g |
| MTC 2/10-FS | 2 g | 5 - 10 g | 0.0001 g |
| MTC 10/30-FS | 10 g | 10 - 30 g | 0.0002 g |
| MTC 50/30-FS | 50 g | 10 - 30 g | 0.0005 g |
