Weighing Kit

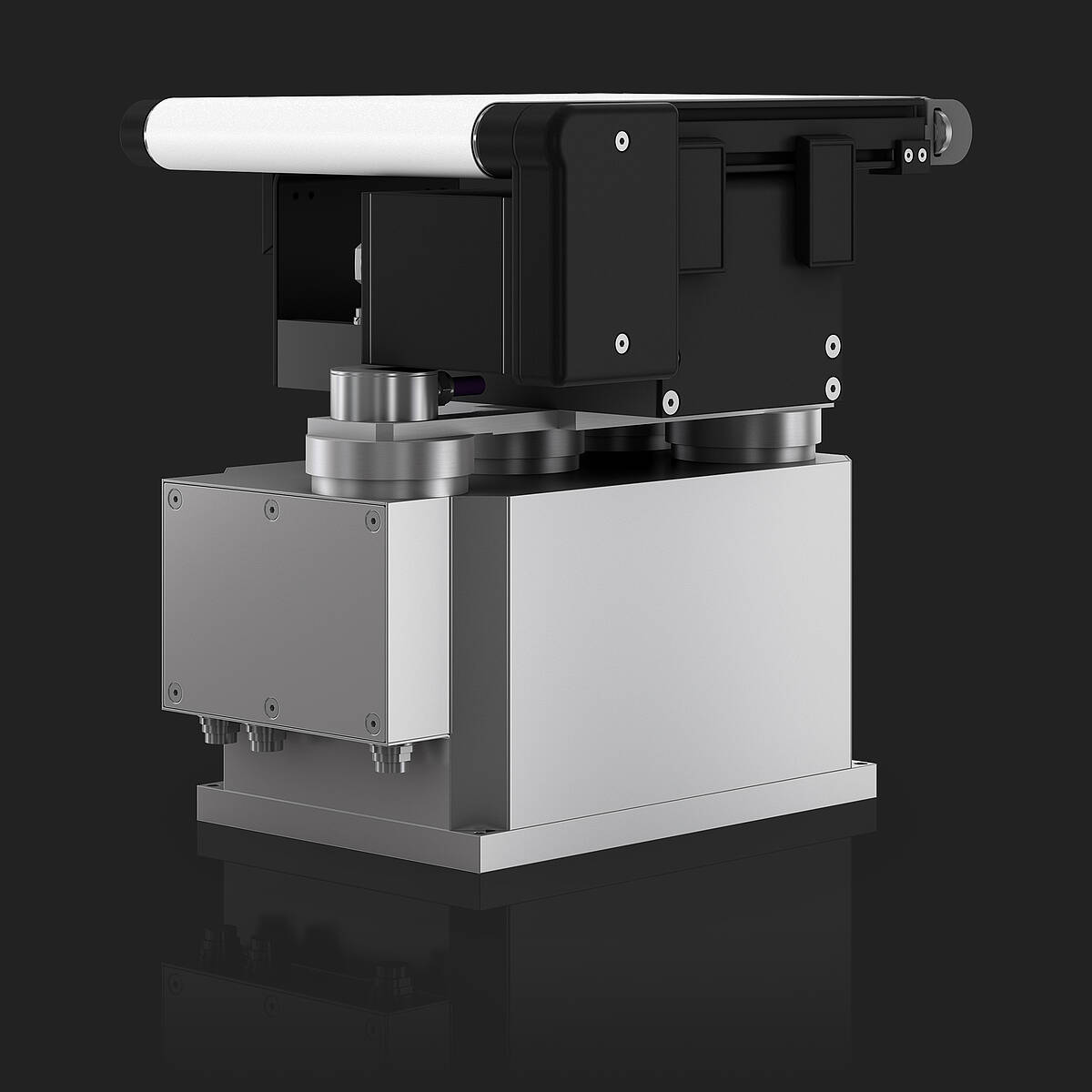

EC-FS - NT30 Conveyor (IP54)
Weighing kits, consisting of an EC-FS Weigh Cell and NT30 conveyor, cover a vast range of possible uses. They are widely used in applications that require both robust and high-precision design.
Weighing range up to 15,000 g
The EC-FS Weigh Cell can be used for a huge variety of weighing and dead load ranges. In addition, the available conveyor widths and lenghts cover the common application specific requirements. The 30 mm roller diameter of the conveyor can optionally be equipped with a knife-edge with 13 mm roller diameter which enables a smooth transition of products with smaller dimensions. All weighing-relevant components are produced in-house and are subject to the highest quality requirements in order to design the Weighing Kit for the intended purpose and to achieve the best possible weighing result. In addition, the Weigh Cell can be equipped with Active Vibration Compensation (AVC) to ensure optimum weighing even in environments with strong vibrations.
Performance
| Max. weighing range (g) | 15,000 |
| Display value (g) | 0.01 |
| Max. dead load range (g) | 15,000 |
| IP (protection class) | 65 |
To be used in
Filling and packaging machines
Checkweighers (for various sectors such as pharmaceuticals, food, chemicals, cosmetics, courier and parcel services, etc.)
Features
- Application specific weighing ranges
- Large choice of weighing ranges
- Protection class IP54
- Active Vibration Compensation (AVC) as an option
- Anodized aluminum conveyor construction
- 30 mm roller diameter for optimum product handling
- Optional knife edge with 13 mm roller diameter
- Application specific conveyor dimensions
- Stepless, maintenance-free servomotor, optimized for high-precision weighing applications
- Interface for communication with Weigh Cell and servomotor (CAN, RS422, Profibus DP, Profinet IO, Ethernet/IP, EtherCAT, Powerlink)
Technical Data
High Precision Weighing Conveyor
| Belt Width (C) | Conveyor Length (B) |
|---|---|
| 120 mm | 200 mm / 300 mm / 400 mm |
| 150 mm | 200 mm / 300 mm / 400 mm |
| 200 mm | 200 mm1 / 300 mm / 400 mm |
| 300 mm | 200 mm1 / 300 mm1 / 400 mm |
| 400 mm | 200 mm1 / 300 mm1 / 400 mm1 |
Infeed and Outfeed
| Belt Width | Conveyor Length |
|---|---|
| 120 mm | 200 mm / 300 mm / 400 mm / 500 mm |
| 150 mm | 200 mm / 300 mm / 400 mm / 500 mm |
| 200 mm | 200 mm1 / 300 mm / 400 mm / 500 mm |
| 300 mm | 200 mm1 / 300 mm1 / 400 mm / 500 mm |
| 400 mm | 200 mm1 / 300 mm1 / 400 mm1 / 500 mm |
¹ only available with flat or round belt
