Nos machines en stock – disponibles immédiatement !

There are applications where you simply want to have a reliable and precise dynamic checkweigher. Making this one thing only. Durable, long-lasting, reliable.
No need for higher throughputs. No need for extensive options nor advanced funtionality.
Here you go!


Features

• Total length:  1.200 mm
• Infeed conveyor: 400 mm (NT30)
• Weighing conveyor: 300 mm (NT30)
• Outfeed conveyor: 500 mm (NT30)
• Working hight: 750-900 mm
• Gross weight range: 1.500 g
• Working direction: right - left
• Ejection system: Air blast
• Sorting function: Too light & Too heavy
• rejection boy lockable, mounted on subframe
• APS statistics package with USB Stick
• 3 colour sorting lamp
• PSK (product flow control)

Price

9.500,00 €

Downloads

Batch coding and checkweighing of folded boxes

This TQS system is an ultra-compact solution with high-resolution TIJ printer and camera inspection to get ready for 2D in Retail. Additionally, it includes a checkweigher without requiring more space. Print and verify 2D codes incl. the GS1 application identifiers and even the GS1 Digital Link to profit from the vast range of new possibilities.


Features

• Total length of machine: 1,200 mm
• Minimum pitch: 300 mm
• Folded box dimensions (LxWxH): 30-120 x 40-200 x 10-150 mm
• Folded box weight: 20 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm


Price

88,500.00 €

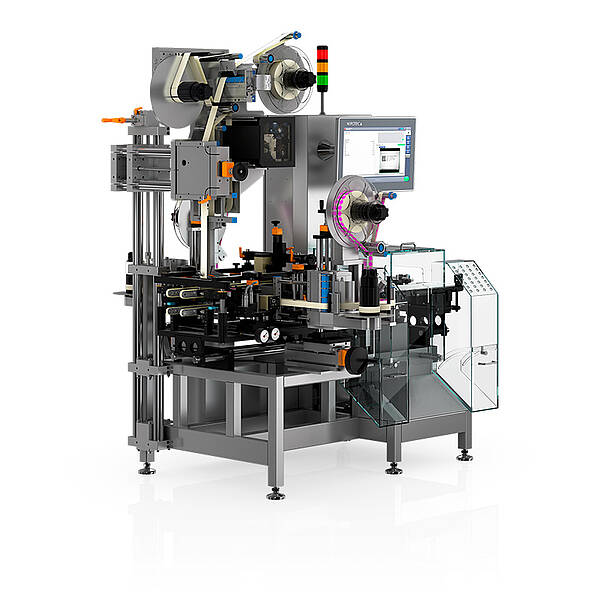

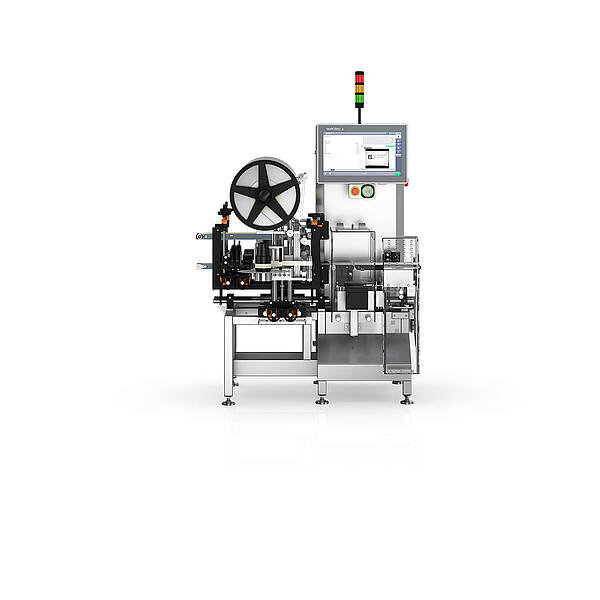

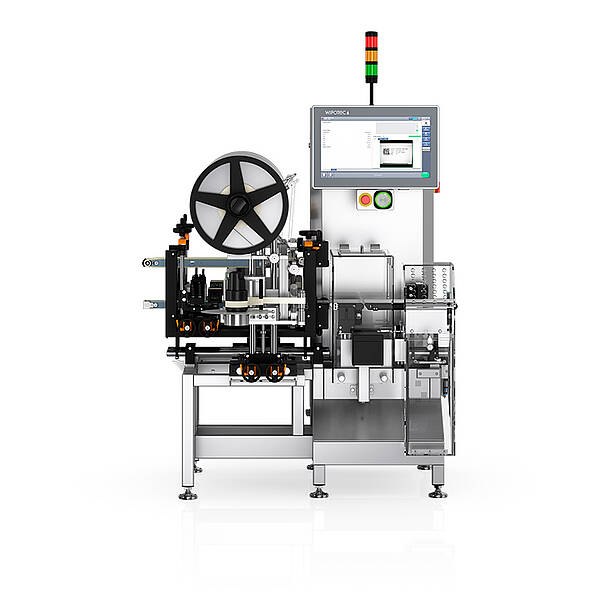

All-in-one operating concept for fast and easy handling

The TQS-HC-A is the first choice for serialization and is appreciated by many customers around the world for its multiple functionalities in a small space and its easy operation. All components are fully integrated and can be operated via a central user interface: the high-resolution TIJ printer, the camera control of the printed data where a separate teach-in is not necessary and the checkweighing.


Features

• Total length of machine: 1,404 mm
• Folded box dimensions (LxWxH): 30-150 x 40-200 x 10-150 mm
• Folded box weight: 20 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm


Price

114,000.00 €

Downloads

All-in-one operating concept for fast and easy handling

The TQS-HC-A is the first choice for serialization and is appreciated by many customers around the world for its multiple functionalities in a small space and its easy operation. All components are fully integrated and can be operated via a central user interface: the high-resolution TIJ printer, the camera control of the printed data where a separate teach-in is not necessary and the checkweighing.


Features

• Total length of machine: 1,404 mm
• Folded box dimensions (LxWxH): 30-150 x 40-200 x 10-150 mm
• Folded box weight: 20 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm


Price

133,500.00 €

Downloads

All-in-one operating concept for fast and easy handling

The TQS-HC-A is the first choice for serialization and is appreciated by many customers around the world for its multiple functionalities in a small space and its easy operation. All components are fully integrated and can be operated via a central user interface: the high-resolution TIJ printer, the camera control of the printed data where a separate teach-in is not necessary and the checkweighing.


Features

• Total length of machine: 1,404 mm
• Folded box dimensions (LxWxH): 30-150 x 40-200 x 10-150 mm
• Folded box weight: 20 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm


Price

133,500.00 €

Downloads

The perfect semi-automatic aggregation

TQS-CP stands for the successful semi-automatic aggregation of manually packed folded boxes. You can conveniently assign units from a lower level (folding box or bundle) to a higher packaging level (shipping carton). The operator places the packaged units layer-by-layer in the shipping carton. Each completed layer is then photographed from above by the fully integrated camera. The camera automatically moves to the preset height for packing in order to always ensure the proper focus distance. After the defined number of layers and units has been reached, the aggregation level is completed and a label is automatically generated. TQS-CP also manages the next packaging level (for example, shipping cartons to pallets). The aggregation of the pallets can be managed in parallel by the optional TQS-MP-EXT. The operator is supported by the integrated display on the handheld scanner.


Features

• Total length of machine: 1,652 mm
• Max. shipping carton dimensions (LxWxH): 600 x 400 x 400 mm
• Max. shipping carton weight: 30 kg
• Incl. Line Manager plus hardware and software for aggregation to shipping cartons and aggregation to pallet.


Price

115,500.00 €

Downloads

The perfect semi-automatic aggregation

TQS-CP stands for the successful semi-automatic aggregation of manually packed folded boxes. You can conveniently assign units from a lower level (folding box or bundle) to a higher packaging level (shipping carton). The operator places the packaged units layer-by-layer in the shipping carton. Each completed layer is then photographed from above by the fully integrated camera. The camera automatically moves to the preset height for packing in order to always ensure the proper focus distance. After the defined number of layers and units has been reached, the aggregation level is completed and a label is automatically generated. TQS-CP also manages the next packaging level (for example, shipping cartons to pallets). The aggregation of the pallets can be managed in parallel by the optional TQS-MP-EXT. The operator is supported by the integrated display on the handheld scanner.

Features

• Total length of machine: 1,486 mm
• Max. shipping carton dimensions (LxWxH): 600 x 400 x 400 mm
• Max. shipping carton weight: 30 kg
• Incl. Line Manager plus hardware and software for aggregation to shipping cartons (aggregation to pallet also possible on request)


Price

82,000.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length. Four conveyor belts. Belt wifth 120 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

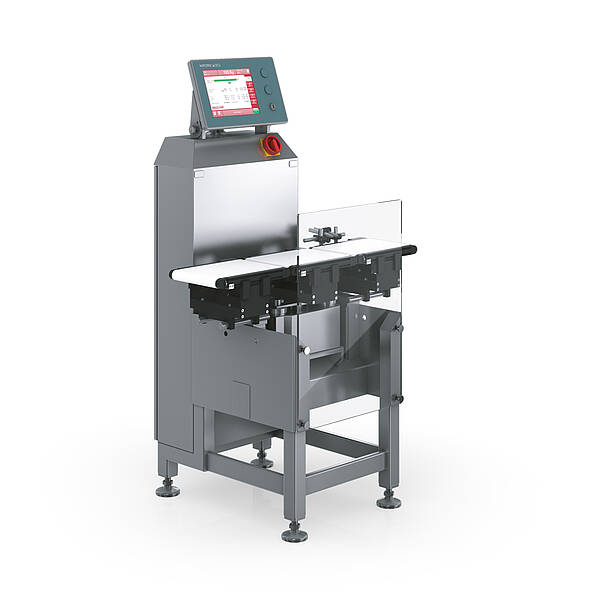

Cookies in Carton box

Checkweighers of the HC-M series targetting medium throughputs and also high accuracies. They employ our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell as well. This HC-M-2000 has a cross weighing range of 1,500 g and a sampling rate of 1 ms. Originally considered for products from 125 - 180 mm length. Three conveyor belts. Belt wifth 300 mm.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 1,500 g
• Working direction: right - left
• Ejection via pusher


Price

24,500.00 €

Cookies in pillow bag

The HC-A Checkweigher series is the base for highest accuracies and throughputs. Its  extraordinary robust frame provides the stability desired to run super fast. At the same time it is the mechanical foundation for our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Originally considered for products from 100 - 260 mm length.


Features

• Total length: 1,515 mm
• Weighing conveyor length: 300 mm
• Working height: 800 - 950 mm
• Gross weight range: 750 g
• Working direction: right - left
• Ejection via power air nozzle
• Rejection shunt


Price

35,500.00 €

Downloads

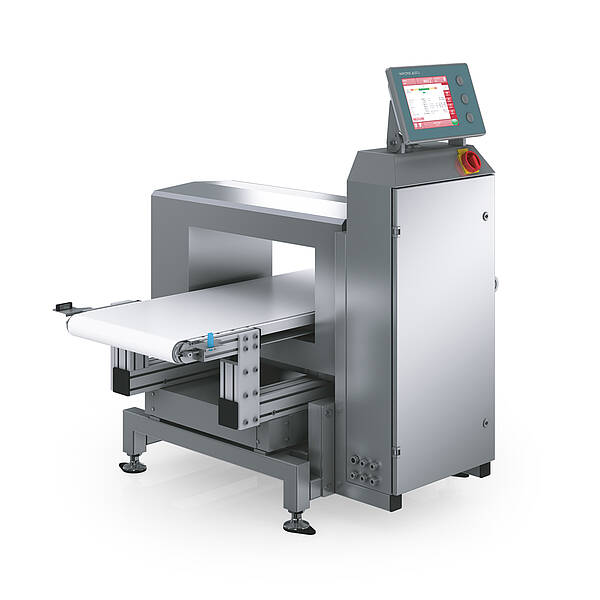

Combined solution for pouch bags

This HC-A Checkweigher combines an metal detector with an openening 200/150. Allowing for pouches up to approx. 70 mm height. Designed to run product length of up to 200 mm at throughputs of up to 220 ppm. It incorporates our Elektro-Magnetic-Force-Restauration (EMFR) Weigh Cell. This HC-A-2000 has a cross weighing range of 750 g and a sampling rate of 1 ms. Fully loaded, many options.


Features

• Total length: 2,170 mm
• Conveyor belt wifth: 120 mm
• Weighing conveyor length: 350 mm
• Working height: 900 - 1,050 mm
• Emergency stop
• Working direction: right - left
• Ejection by two power air nuzzles


Price

52,000.00 €

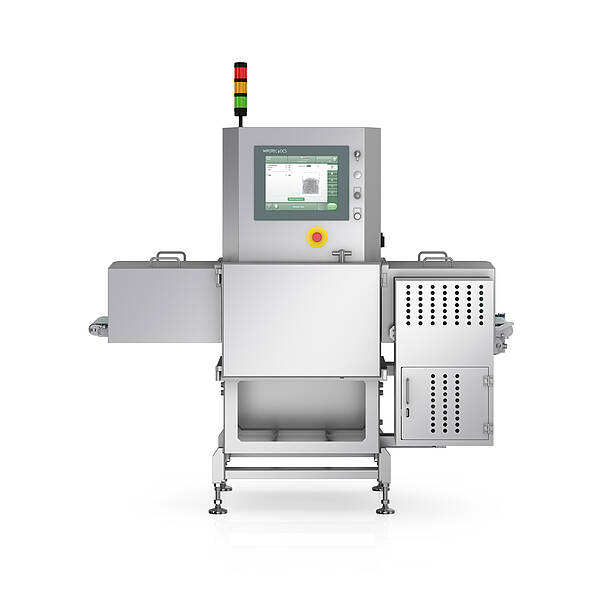

Best entry with high-tech X-ray scanner

The SC-E is the perfect entry to the world of ultra-modern X-ray inspection systems and the associated high quality product line of Wipotec.

Designed and developed to meet the most stringent requirements of foreign body detection, with an optional comprehensive software package, the scanner becomes an excellent all-rounders that reliably performs count, completeness, fill-level checks, and mass determination.

The SC-E product series is more than a good investment for all users who are looking for highly professional foreign body detection. It represents a well-engineered, technical and economical solution at a highly competitive price.


Features

• Total lenght incl. covers: 1,800 mm
• Working height: 850 - 950 mm
• Working direction: left - right
• Additional features: Access for remote diagnose


Price

55,121.00 €

Downloads

Separate standing unit for offline serialization

This solution for offline marking of flat cartons enables cost-efficient serialization of folding boxes that can then be erected and filled with a specific pharmaceutical product. This machine is equipped with a high-resolution TIJ printer to mark from the top side as well as a camera to assess the print quality. As a centralized serialization solution, TQS-SP for flat boxes is a welcome alternative for inline serialization for small and medium batches. The TQS-SP is ready for use immediately after connection via our open and standardized interface to a Level 3 system of your choosing.


Features

• Total length of machine: 2,900 mm
• Flat carton dimensions:
    - min. 45 x 64 mm
    - max. 430 x 372 x 5 mm
• Max. print layout size (LxH): 50 x 25.4 mm


Price

89,500.00 €

Downloads

Separate standing unit for offline pre-serialization of labels

With our TQS-LI, you are able to mark labels with e.g. a serialized DataMatrix code via a fully integrated TTO printer as well as a full surface camera that assesses the print quality. The label roll is placed on the unwinder, good labels transfer to the rewinder, incorrect labels are removed manually. The rewound label roll can be used in a production line with a labeler without a TTO printer if batches require batch coding or serialization.


Features

• Total length of machine: 1,650 mm
• Max. label roll diameter: 410 mm
• Max. label release liner width: 310 mm
• Max. print layout size (LxH): 53 x 55 mm


Price

60,000.00 €

Downloads

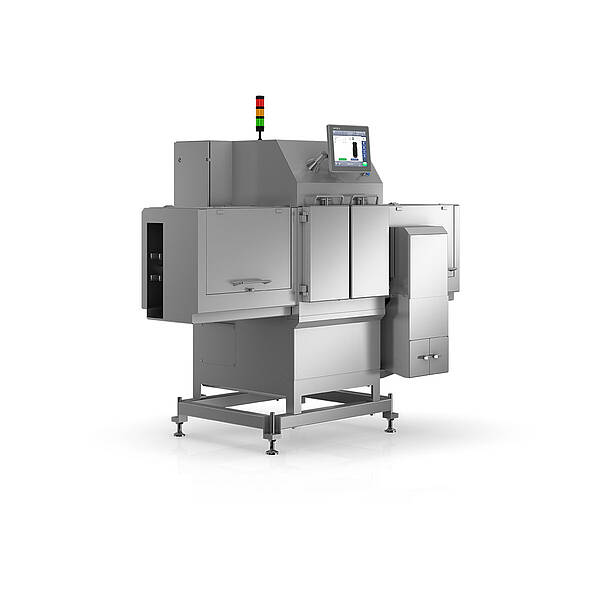

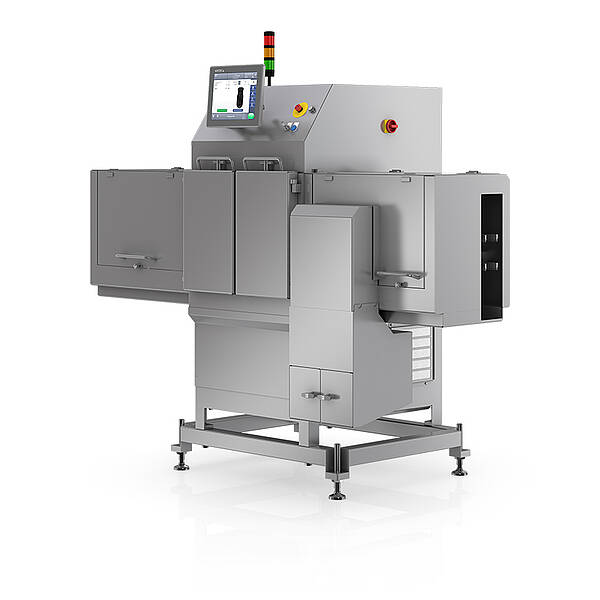

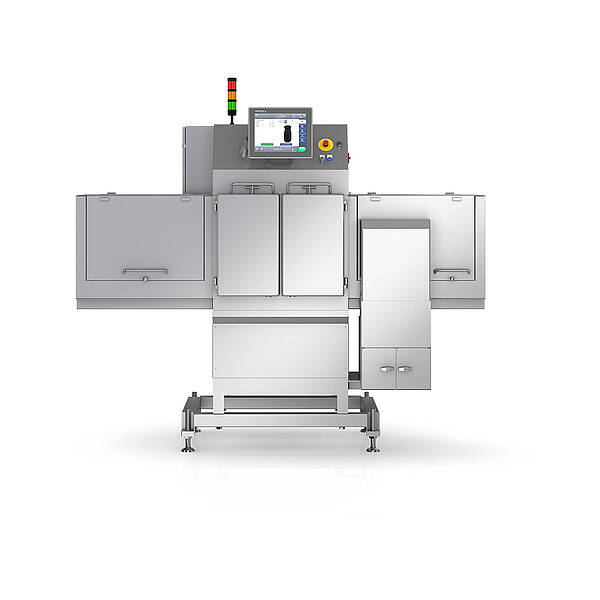

Top performance with the greatest flexibility

The globally successful SC product line meets the highest standards of modern quality management. Nothing is left to chance in terms of process safety and hygienic design. A high performance camera detector equippedwith HD-TDI technology ensures high resolution and sharp X-ray images, while providing the optimal basis forthe image processing software developed at Wipotec. The minimal faulty rejection rate combines with the maximal detection accuracy to provide the greatest possible safety.

All of the X-ray scanners from Wipotec havethe same familiar and convenient userinterface found in the checkweigher line. Designed for protection class IP65 withfull stainless steel construction, the systemfeatures a balcony design and sloped surfaces that, together with the C-shapedand weldless product chamber, enablethorough cleaning quickly and easily.


Features

• Total lenght incl. covers: 1,910 mm
• Working height: 850 - 950 mm
• Working direction: left - right
• Additional features:
  - incl. Infeed and outfeed conveyors in VA30WA
  - Access for remote diagnose


Price

79,242.00 €

Downloads

Simple aggregation of sets/bundles – flexible and format-independent

TQS-BP is perfectly equipped for the simple implementation of the first aggregation level and checkweighing. The system enables the serial numbers from multiple single packages to be combined to form one unique serial number for the set.  The machine‘s intelligent code identification provides optimal flexibility, even with any eventual variations in geometry.


Features

• Total length of machine: 1,703 mm
• Bundled packs (LxWxH): 30-350 x 40-200 x 10-200 mm
• Bundled packs weight: max. 5.000 g


Price

141,000.00 €

Downloads

Made for larger products demanding high cleaned environment

For those who work with open products. For those who have heavier weights to be verified and checked. The HC-M-WD-SL serves you in any demanding wash-down environment (high pressure clearner). The well-designed performance features of the HC-M-WD-SL model satisfy all cleaning criteria and the most stringent hygienic requirements of the food industry.

Rounded surfaces and defined drip edges in combination with an open design and protection class IP69K provide the best conditions for optimal hygiene.


Features

• Total length: 800 mm
• Weighing conveyor width: 400 mm
• Working height: 730 - 800 mm
• Gross weight range: 30,000 g
• Working direction: left - right
• Ejection: electrical dry contact
• Emergency stop
• Single wire identification
• Ethernet interface


Price

18,000.00 €

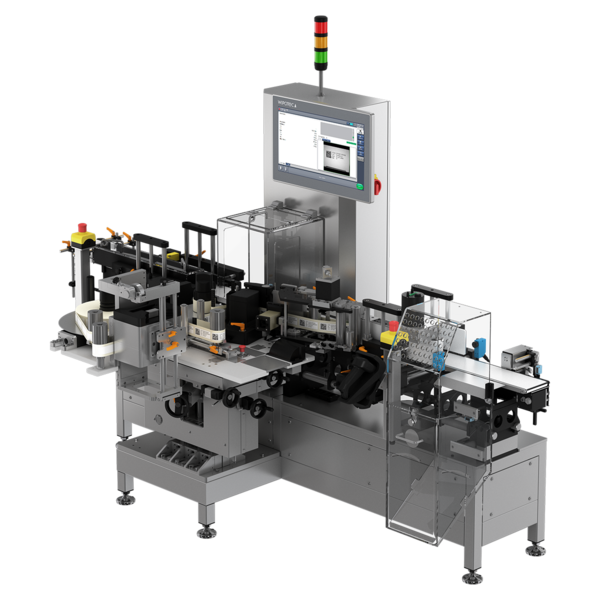

Serialization and 360° inspection of bottles

TQS-SP-Bottle can be set up directly at the outfeed of a labeling machine to verify the previously serialized labels on individual bottles via a 360° camera inspection. Bottles with non-readable or invalid serial numbers will be rejected. The machine prints auxiliary codes and verifies bottles and vials. Printing is completed by the CIJ printer on the underside of the bottle or vial. Subsequently, the machine verifies the previously serialised bottle or vial labels.


Features

• Total length of machine: 1,608 mm
• For bottle dimensions (DxH): 30 - 110 x 30 - 150 mm
• Auxiliary coding from bottom via CIJ printer and inspection
• 360° camera system: incl. central adjustment unit for tool free adjustment of all 6 cameras to respective bottle diameter


Price

103,000.00 €

Downloads

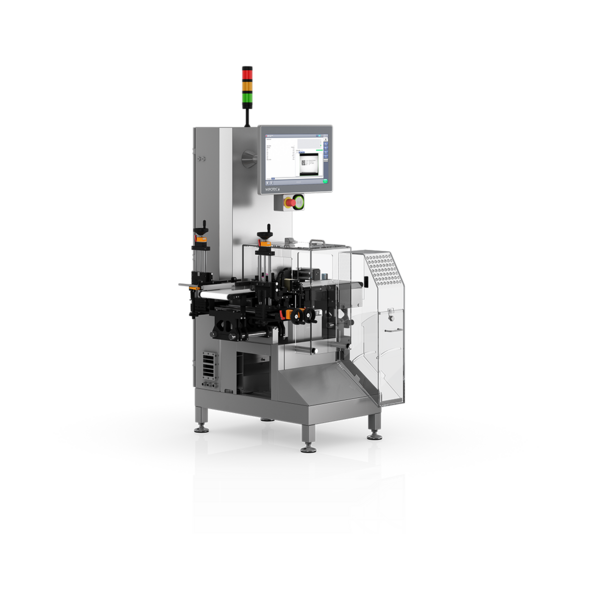

Serialisation of folded boxes

The TQS-SP is the first choice for serialization and is appreciated by many customers around the world for its small space and its easy operation. All components are fully integrated and can be operated via a central user interface: the high-resolution TIJ printer and the camera control of the printed data where a separate teach-in is not necessary.


Features

• Total length of machine: 1601 mm
• Folded box dimensions (LxWxH): 30-150 x 80-200 x 10-150 mm
• Folded box weight: 5 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm


Price

84,000.00 €

Downloads

The 3-in-1 Scale Solution for Greater Throughput

The HC-FL-2 catchweigher is a combination of two single-platform scales in line. Both scales work simultaneously and independently of each other. The machine is ideal for applications where high belt speeds and top throughputs are required - perfect for the CEP sector.


Features

• Transport speed up to 2,0 m/s
• Weighing range up to 60 kg
• Conveyor dimensions:
• Weighing conveyor 1 = 900 x 1,000 mm (L x W)
• Weighing conveyor 2 = 1,200 x 1,000 mm (L x W)
• Working height range 800 – 900 mm
• Two single-platform scales which can be combined to a third virtual scale


Price

36,000.00 €

Downloads

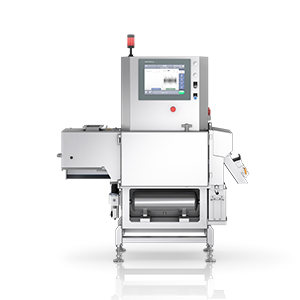

Bulklow inspection and 6-fold sorting

Machine based on SC 3000, suitable for e.g. washed rice. 7 years warranty for VioX camera.


Features

• Rejection tunnel incl. cleaning port, prepared for “Jacob flange”
• Compressed air storage
• Access for remote diagnose


Price

53,200.00 €

Bulklow inspection and 6-fold sorting

Machine based on SC 3000, suitable for e.g. washed rice. 7 years warranty for VioX camera.


Features

• Rejection tunnel incl. cleaning port, prepared for “Jacob flange”
• Compressed air storage
• Access for remote diagnose


Price

53,200.00 €

All-in-one operating concept for fast and easy handling

The TQS-HC-A is the first choice for serialization and is appreciated by many customers around the world for its multiple functionalities in a small space and its easy operation. All components are fully integrated and can be operated via a central user interface: the high-resolution TIJ printer, the camera control of the printed data where a separate teach-in is not necessary, the tamper-evident labeling and the checkweighing.

Features

• Total length of machine: 1.800 mm
• Folded box dimensions (LxWxH): 30-120 x 65-200 x 10-150 mm
• Folded box weight: 20 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm

Price

114.000,00 €

OEM Components for maximum flexibility and space-saving integration

The coding takes place on product labels. The unit can be integrated into any packaging line.Thanks to ConfigureFast, all print data is sent directly to the printer and the print image to the camera. You can operate all system components directly, quickly and easily from a single software interface without changing programs.


Versatile solution for integration into other machines.


Price

46,000.00 €

Aggregation of serialized bottles

TQS-CP-Bottle can be set up directly at the outfeed of a labeling machine to verify the previously serialized labels on individual bottles via a 360° camera inspection. Bottles with non-readable or invalid serial numbers will be rejected. Good products are collected up to the target amount for the shipping carton and handed over to the operator for packing. Once the carton is full, the operator applies the automatically printed label to the carton and verifies it with a handheld scanner. In the final step, shipping cartons can also be manually aggregated to a pallet.


Features

• Total length of machine: 3,370 mm
• For bottle dimensions (DxH): 30 - 110 x 30 - 200 mm
• 360° camera system: incl. central adjustment unit for tool free adjustment of all 6 cameras to respective bottle diameter
• incl. 1 infeed screw for product separation (add. on request)


Price

102,500.00 €

Downloads

Aggregation of serialized bottles

TQS-CP-Bottle can be set up directly at the outfeed of a labeling machine to verify the previously serialized labels on individual bottles via a 360° camera inspection. Bottles with non-readable or invalid serial numbers will be rejected. Good products are collected up to the target amount for the shipping carton and handed over to the operator for packing. Once the carton is full, the operator applies the automatically printed label to the carton and verifies it with a handheld scanner. In the final step, shipping cartons can also be manually aggregated to a pallet.


Features

• Total length of machine: 3,370 mm
• For bottle dimensions (DxH): 30 - 110 x 30 - 200 mm
• 360° camera system: incl. central adjustment unit for tool free adjustment of all 6 cameras to respective bottle diameter
• incl. 1 infeed screw for product separation (add. on request)


Price

93,000.00 €

Serialisation of folded boxes

The TQS-SP is the first choice for serialization and is appreciated by many customers around the world for its small space and its easy operation. All components are fully integrated and can be operated via a central user interface: the high-resolution TIJ printer and the camera control of the printed data where a separate teach-in is not necessary.

Features

• Total length of machine: 802 mm
• Folded box dimensions (LxWxH): 30-150 x 40-200 x 10-150 mm
• Folded box weight: 5 - 400 g
• Max. print layout size (LxH): 50 x 25,4 mm

Price

49.000,00 €

Serialization and 360° inspection of bottles

TQS-SP-Bottle can be set up directly at the outfeed of a labeling machine to verify the previously serialized labels on individual bottles via a 360° camera inspection. Bottles with non-readable or invalid serial numbers will be rejected. The machine prints auxiliary codes and verifies bottles and vials. Printing is completed by the CIJ printer on the top of the bottle or vial. Subsequently, the machine verifies the previously serialised bottle or vial labels.


Features

• Total length of machine: 1,327 mm
• For bottle dimensions (DxH): 30 - 110 x 30 - 150 mm
• Auxiliary coding from top via CIJ printer and inspection
• 360° camera system: incl. central adjustment unit for tool free adjustment of all 6 cameras to respective bottle diameter


Price

87,000.00 €

Downloads

X-ray inspection and weighing

One machine - one operating panel - two applications

The system is designed as a low-wear curtainfree 2-track system without the risk of cross-contamination due to the absence of curtains.


Features

• Total lenght incl. covers: 3,340 mm
• Working height: 900 - 1,000 mm
• Working direction: left - right
• Track center distance: 220 mm
• Additional features:
  - Curtain free
  - 2 rejection units per lane


Price

83,237.00 €

Downloads

Simple aggregation of sets/bundles – flexible and format-independent

TQS-BP is perfectly equipped for the simple implementation of the first aggregation level. The system enables the serial numbers from multiple single packages to be combined to form one unique serial number for the set.  The machine‘s intelligent code identification provides optimal flexibility, even with any eventual variations in geometry.


Features

• Total length of machine: 1,502 mm
• Bundled packs (LxWxH): 50-350 x 40-200 x 10-200 mm
• Bundled packs weight: max. 5.000 g


Price

67,500.00 €

Downloads

Serialisation of folded boxes

The TQS-SP is the first choice for serialization and is appreciated by many customers around the world for its small space and its easy operation. All components are fully integrated and can be operated via a central user interface: the high-resolution REA JET laser and the camera control of the printed data where a separate teach-in is not necessary.


Features

• Total length of machine: 1105 mm
• Folded box dimensions (LxWxH): 20-100 x 40-200 x 10-100 mm
• Folded box weight: 5 - 250 g
• Max. print layout size (LxH): 50 x 40 mm


Price

61,500.00 €

Downloads
